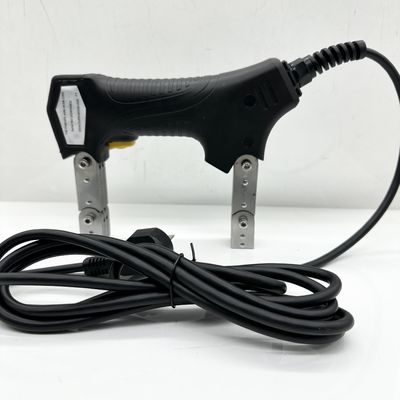

HCDX-220S Handy AC Yoke Magnetic Flaw Detector UV Lamp & White Light for Weld Inspection

HCDX-220S Handy AC Yoke Magnetic Flaw Detector UV Lamp & White Light for Weld Inspection

Application

•Surface and subsurface testing for field testing

•Surface and subsurface for spot inspections

•Surface and subsurface for in-service inspections

•Surface and subsurface for demanding environments

•Surface and subsurface for weld inspection

Technical parameter

Functional characteristics

1. AC working mode, the probe can be directly connected to the AC220V power supply for flaw detection work;

2, The lamp is automatically lit when magnetized, the UV and white light can be switched, and the fluorescent magnetic particle detection and ordinary magnetic particle detection can be performed;

3, High sensitivity, strong lifting force, high flaw detection efficiency.

4. Duty time: 5 minutes on,1 minute off

5. Sealed, durable construction

Standards conform

• ASME BPVC

• ASTM E709

• ASTM E1444

• ASTM E3024

• ISO 9934-3

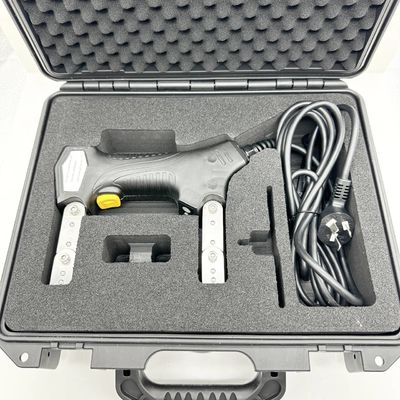

Configuration list

1, D type yoke 1 set (including 3 meters probe line)

2. 1 set of auxiliary tools

3, User manual, warranty card, certificate of 1

4, Instrument box
