Λεπτομέρειες:
|
| Processor: | Above Celeron 1.5GHZ | Memory: | 128MB |
|---|---|---|---|
| Σύνδεση: | Rs232 ή USB | Τυποποιημένος έλεγχος: | 38 mm ανιχνευτής |
| Υψηλό φως: | Standard Probe Wire Rope Flaw Detector,128MB Wire Rope Flaw Detector,38mm Probe Wire Rope Flaw Detector |
||
Wire Rope Flaw Detector
Standards: GB/T21837-2008, ASTM E1571-2001 (Standard specification for electromagnetic examination of ferromagnetic steel wire rope), GB/T5972-2006/ISO 4309:90, GB8918—2006
Detecting range:Φ1.5—300 mm (choose different sensor)

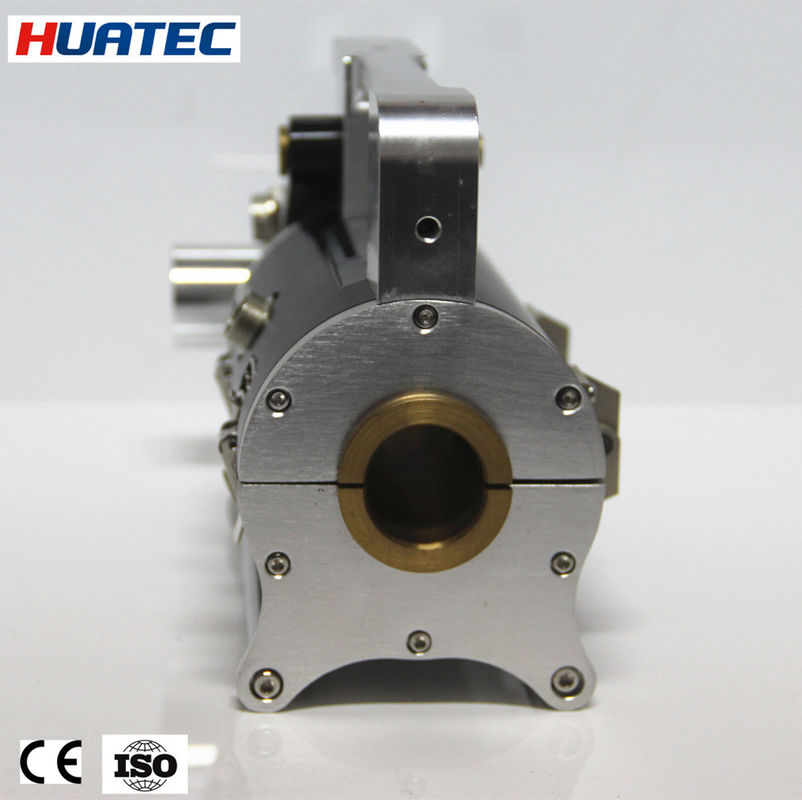

| Magnetic sensor (including distance locator) | A group |
| HUATEC HRD-100 real-time alarm apparatus | One |
| Signal connection line | One |
| RS232 transmission line (or USB to RS232 transformation line) | One |
| windows special-purpose software package | One |
| Computer | One |

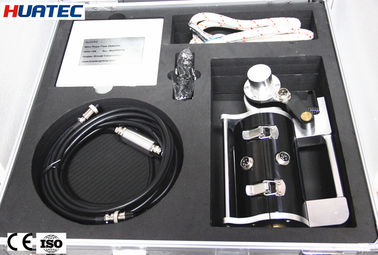

Standard accessories
Probe 1 set
Real time alarm 1pc
Signal cable 1pc
HRD PC analyse software 1set
Communication cable 1pc
Charger 1pc
Tool 1set
Instruction manual 1set
